Description:

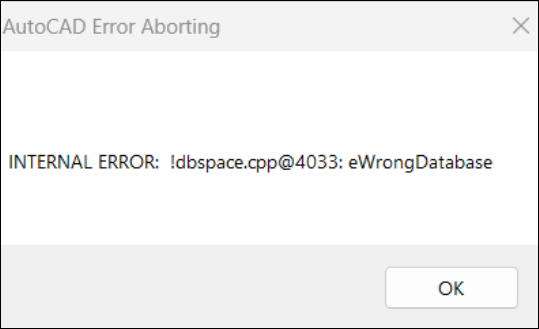

Inserting a panel builder configuration into an existing project drawing generates the following error:
Solution:
- Activate the command Convert Plan to 3D.
- For select objects type the word ALL and press enter twice. This will begin converting all CAP objects in the drawing to 3D. This may take some time depending on the drawing size.
- Once complete and the drawing has been converted to 3D, type PURGE on the command line and press enter.

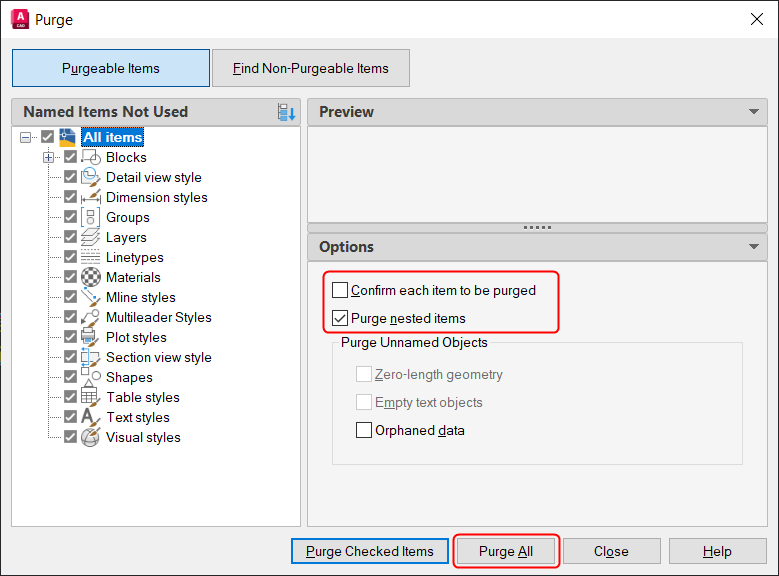

- In the Purge dialog window, remove the check mark next to Confirm each item, and put a check mark next to Purge nested items. Then click the Purge All button. Continue to press the Purge All if needed until it greys out and can no longer be clicked. Then Close the Purge dialog window.
- Activate the command Convert 3D to Plan.
- For select objects type the word ALL and press enter twice.
- This will begin converting all CAP objects in the drawing to plan view.
- Once complete and the items are converted to plan, type PURGE on the command line and press enter.
- In the Purge dialog window, perform the Purge All process the same as step 4 above. Once done, close the Purge dialog window.
- Type AUDIT on the command line and press enter.
- Type YES to fix any errors detected and press enter.
- Once the Audit is complete, test if you are now able to insert the panel builder configuration into the drawing without the error.
