If you wish to turn off or hide the symbol text or tags on CAP furniture blocks you can use the layer off tool to quickly select a tag and the layer the tag resides on will be turned off.
- From the 2020 Office ribbon select the Layer Profiles button, and then select Layer Off.
- Select the symbol text or tag you wish to turn off.
- That tag should then be turned off. You may keep clicking on items to turn off the corresponding layer or press enter to end the command.
Note: Clicking the Layer On button will turn back on all layers you have previously turned off using the layer off command.

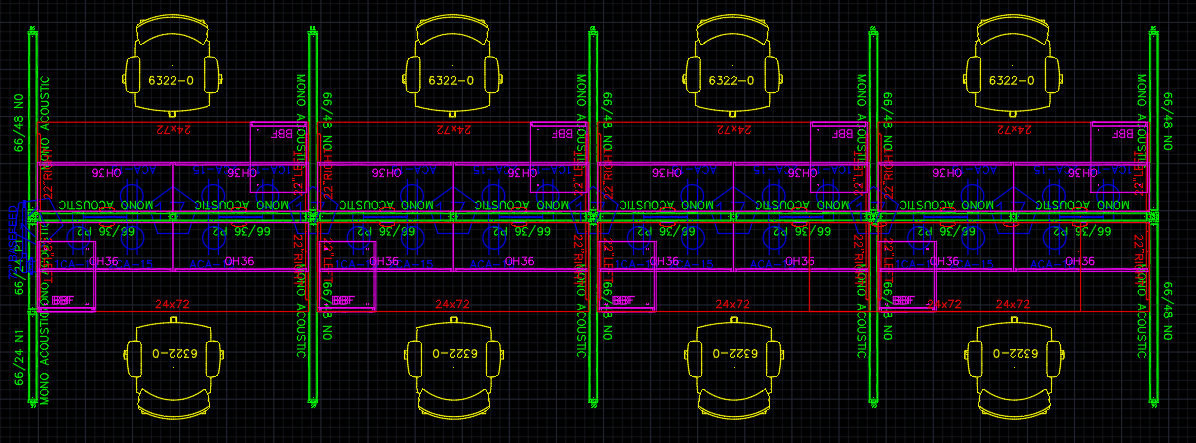

Example: Furniture drawing with all tags visible

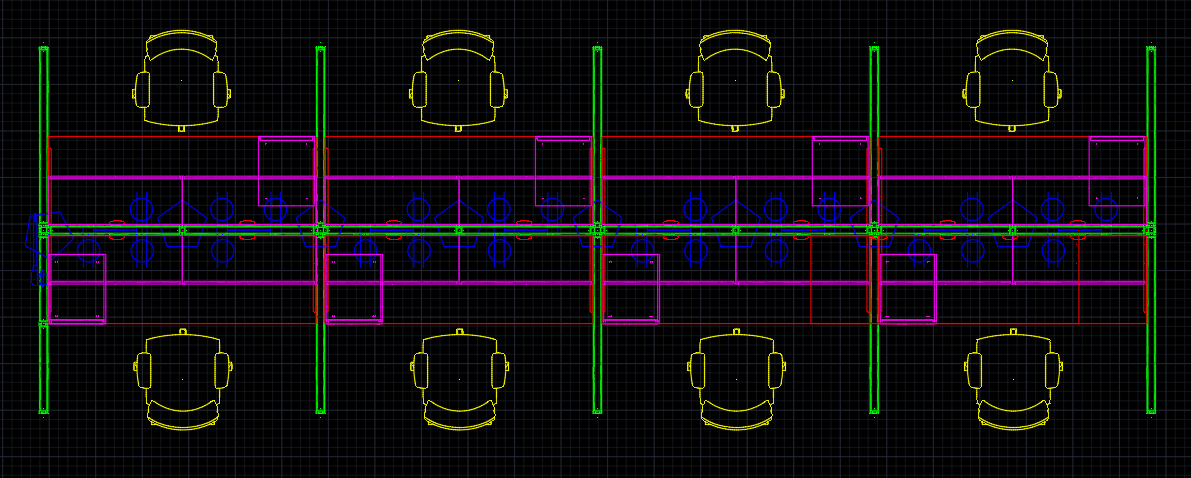

Example: Furniture drawing with their tag layers turned off.
