Edit a Standard's information

To edit a Standard's name, description or Alias values:

1. Click on the Cap Standard toolbar.

2. Select the Standard on the drawing.



3. Press Enter to confirm your selection.

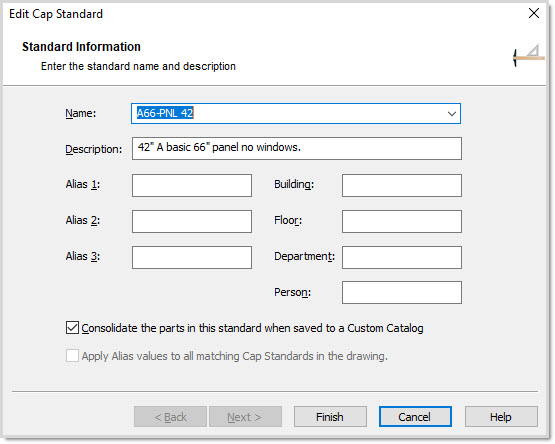

4. In the Edit Cap Standard dialog box, change the Name, Description or Alias fields.





5. You can Consolidate the parts in this standard and Apply Alias values... to copy the alias tags to all identical standard items.
   For more details about consolidating, see the article Consolidate identical item.



6. Click Finish.
