If there is at least one part in the Non-Plan Item List, the NPIL table is displayed on the drawing. If it is not displayed, do the following:
-
Click
on the NPIL toolbar.
-
Specify the insertion point and the rotation angle for the Non-Plan Item List legend on the drawing.
Note: To always display the NPIL table on the drawing if there is at least one part in the NPIL, you will need to check the preference Add non-plan item list table automatically to the drawing in Advanced Preferences.

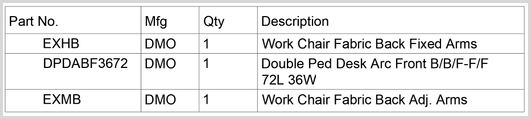

Non Plan Item List
