Because Teknion may not provide any tags in their data for the Show Part Number/Tag function, Cap automatically assigns tags to Teknion symbols. These tags contain the Part Number added to symbols when they are inserted. Symbols that came from the manufacturer with tags will insert with the tags the manufacturer provides.

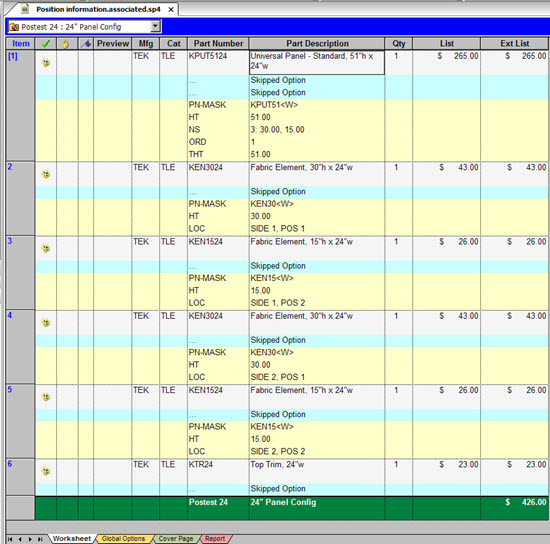

The Teknion Panel Builder Configurations include positional information (LOC) as well as the height (HT).The ORD is the ordinal or the position of the frame, for example, if you had a stack-on, it would be ORD 2. NS is the number of slots. In the following example we have a base (1) then (2) elements =3. This is the information that is present in the Teknion SIF file so they know how to build the frame.
