Create a draw schedule from a worksheet
After you have created a worksheet and specified options in the worksheet, you can bring it into your drawing as a draw schedule. The resulting draw schedule will be a table entity, so you will able to use any table editing command such as resizing columns and rows, moving the table, and manually editing any text in the table.
The draw schedule is not linked to the worksheet. If you make changes to the worksheet, you will need to regenerate the draw schedule.
-
From the Office menu, select Worksheet, then Draw Schedule from Worksheet.
You may also use the Office toolbar or the Office ribbon. -

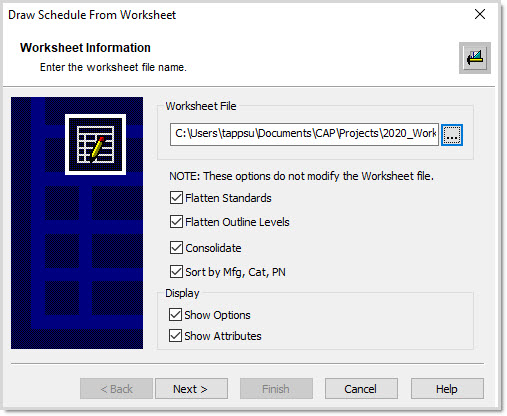

In the Worksheet Information dialog box, type in the worksheet name or click
to find the worksheet.
-
Select whether you want to flatten standards, flatten outline levels, consolidate items, and/or sort by manufacturer, category and part number.
-
Select whether you want to show options and/or attributes.
-
Click Next.
Note: The selections you make on each pane of the Draw Schedule Wizard is saved so that they are automatically selected the next time you run the wizard.
