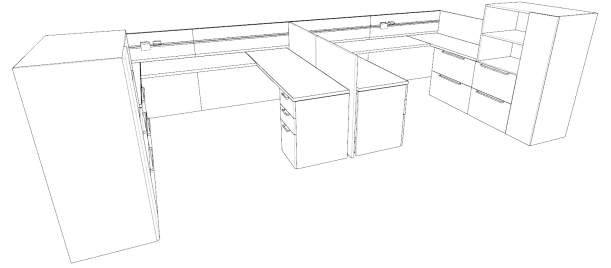

STAKS by OFS
Cap
Change your AutoCAD settings to enable point objects. This will help determine the best node points to snap to when space planning this product. Set PDMODE to 35 and PDSIZE to .25

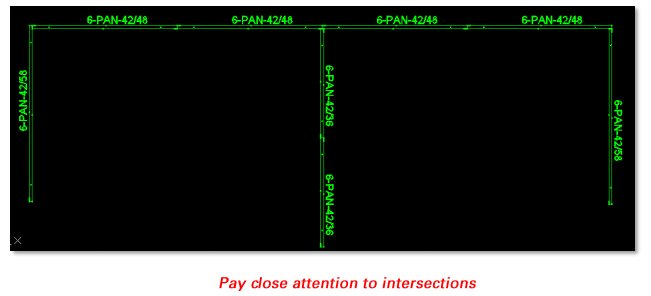

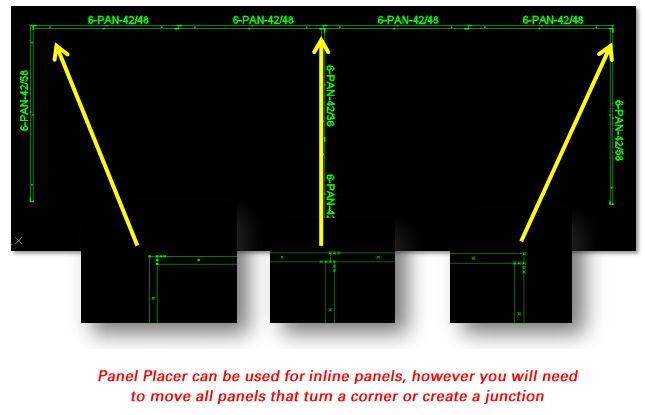

Using the "Space Division" section of the catalog, plan your spine or divider walls.
Once the panels are placed, open the "Automation Center" to access the automation tools.

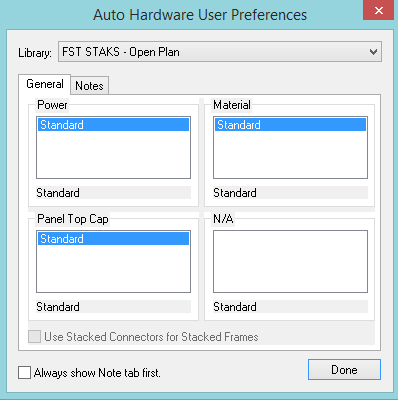

Set "Auto Hardware User Preferences" to FST STAKS - Open Plan

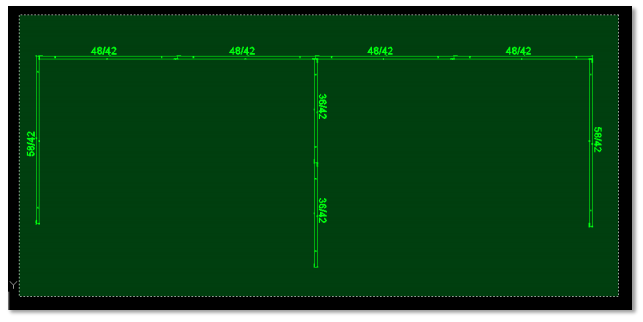

Run "Auto Hardware" and make a selection window to surround all panels that connect.

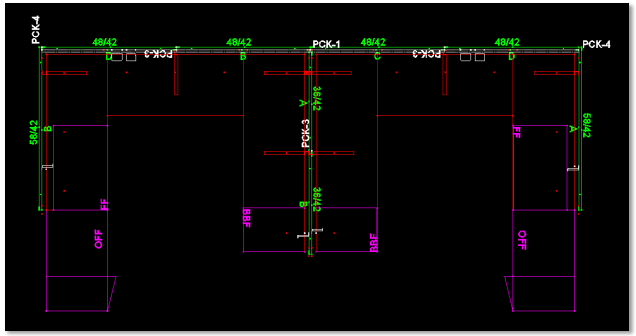

The tags denote the type of connector kit and panel routing required for order entry.
Example Shows:
PCK-1: T connector kit for -3 42" or 48" tall spine or divider wall panels
PCK-3: Inline panel to panel connector kit for 42" tall spine or divider wall panels
PCK-4: T and L connector kit for -2 42" tall spine or divider wall panels

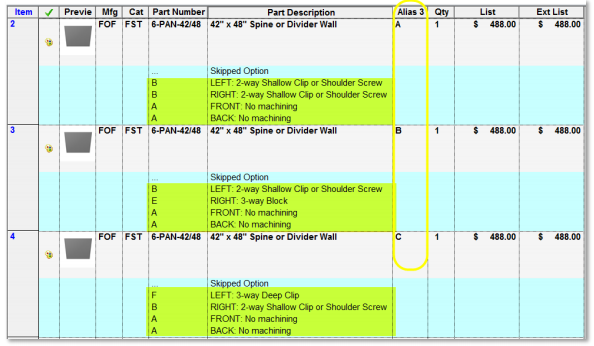

A, B, C tagging helps sort based on routing options (Unique tag is based on panel size and is transferred to the Alias 3 column in 2020 Worksheet)
Now place remaining components.
Worksheet

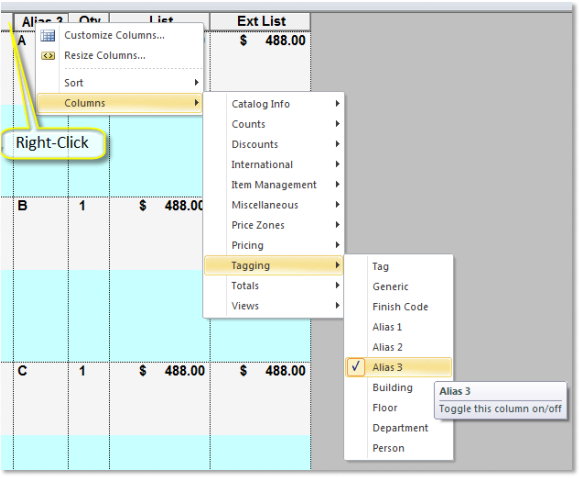

The options for routing will appear in the option trail and by turning on the Alias 3 column so you can sort by the tag that was placed in the drawing.
