If you already created your configuration using the Tile tags option, you can change
to elevation mode by following the steps below:
-
Click
on the Cap Auto-Connectors & More toolbar.
-
Select Show Elevations and click OK.
- Select your frames. Press Enter to confirm your selection.
The tile tags will be changed to the configuration names.
- AutoCAD will prompt you to pick the locations for the elevations. Pick a point away from your layout.

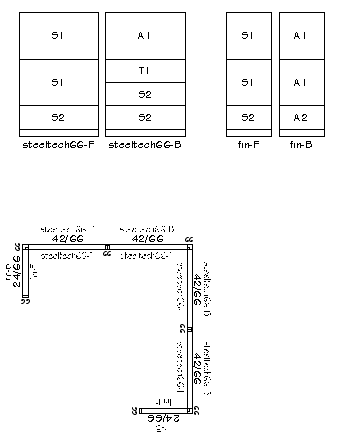

The configurations will have "-F" or "-B" appended to the name to indicate the Front Elevation and the Back Elevation respectively.
When you make changes to the configurations, the elevations will automatically be updated.
Note: You can switch from Elevation mode to Tag mode by selecting Show Tags in the Refresh
Config Options dialog. Check Delete Existing Elevations to delete the elevations
on the drawing.
