When you convert frames with Captile to 3D there are a few tricks you need to use to get the drawing to be correct.

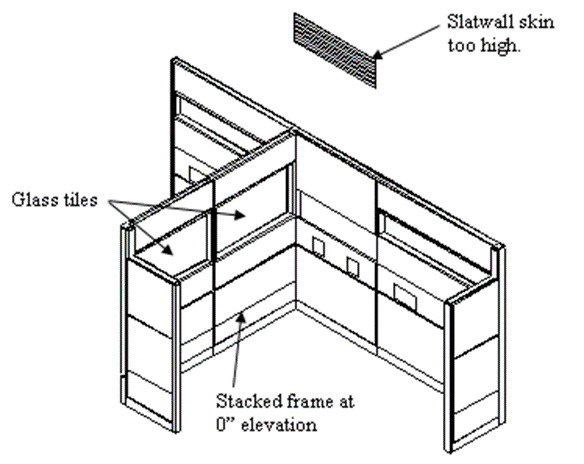

Usually the tiles will automatically go to the right height, however some tiles may not be at the height you wish. Also, if you did not put your stackers at the correct height you will need to adjust them.
Note: Do the following on a copy of the configuration. Modifying the pickstyle and changing the 3D height of a symbol can break your Captile configuration.
- Type pickstyle at the command prompt, then enter 0 for the new value. This way you can select the tile separately from the frame. Note: You do not need to change the pickstyle if you need to change the height of top caps.
- Click
on the Cap Edit toolbar to change the elevation of the frames or tiles.

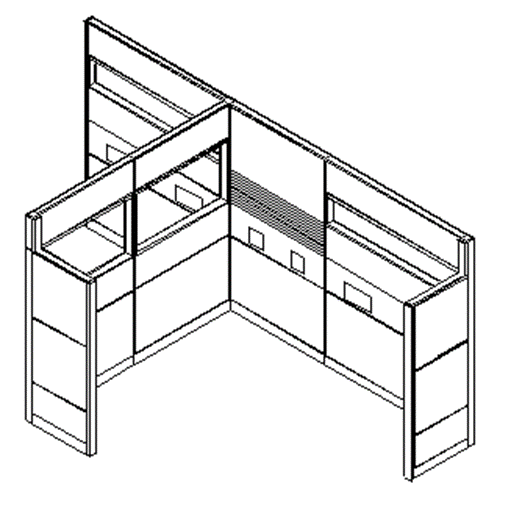

- When viewing in hidden lines, you need to freeze the actual layer for glass (A-FURN-3-PNLS-WINDOW) for glass tiles to appear transparent and reflective. The image below displays the corrected drawing:
