Note: The manufacturer catalog you are working with determines the availability of this feature. The way panel run elevations are created is also manufacturer-specific.
A dynamic panel-run elevation is logically connected to its plan-view parent so that if the parent configuration is modified, the elevation is also immediately modified to match the parent configuration. Linked elevations are a one-to-one relationship to their parent. Should the parent plan-view graphics of a linked elevation be erased, the elevation is also erased.
-

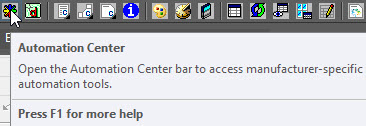

Click the Automation Center icon in the Cap toolbar.
-

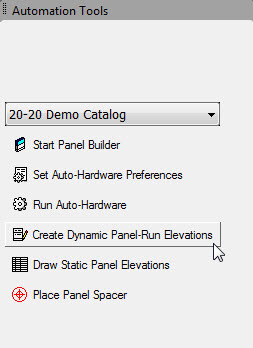

Click Create Dynamic Panel-Run Elevations.
-

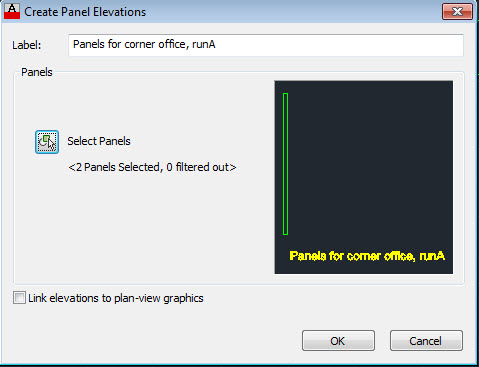

In the Create Panel Elevations dialog box, give your panel elevation a name in the Label field.
-
Click the Select Panels icon and select the panels for which you want an elevation.
-
Click to select the elevation view location to be used for your elevation. (For example, if you would like to get an elevation for a panel on the inside of a configuration, click inside the panel structure.)
-
Move the mouse toward the panel whose elevation you would like to capture and click.
The Create Panel Elevations dialog window returns with the panel elevation displayed. -
Click OK.
The Create Panel Elevations dialog box closes and your panel elevation is attached to your mouse. -
Click at the location in your drawing where you would like to place your elevation.
-
Rotate your elevation if necessary and click to set the elevation in place.
