Once you have placed the elements (frame and tiles) in the Panel Configuration Pane, you may start assigning specific properties.
-
Select the frame or tile in the Panel Configuration Pane.
Note: If the panel configuration already has both panel frames and tiles in it, you would click one time to set the properties for the tile or else click a second time to select the properties for the frame instead.
The manufacturer catalog you are working with determines the available Properties.
For example, two manufacturers may offer different widths of power and non power frames,
and different types of finish fabrics for tiles. -

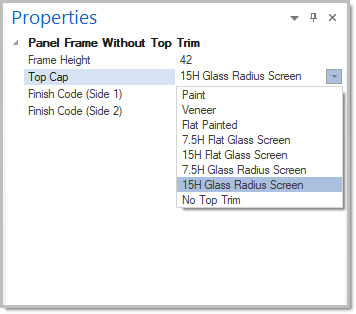

Click in the field to the right of the property name to make a different selection for the selected frame or tile.

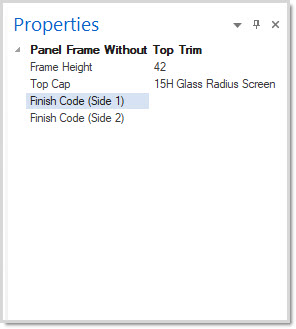

The new selection is displayed in the property field and the Panel Configuration changes as well.
Note: Changing properties can change the part number of the frame or tile, or it may change its options and possibly add parts to the configuration. You simply have to select the properties. Panel Builder takes care of making the correct underlying changes.
