Material assignments begin with understanding that all symbols that are drawn in Giza are created out of 20 different colors. This can be expanded by utilizing material assignments for individual object. This also helps to get all objects that are similar like work surfaces to be the same color and texture.
-

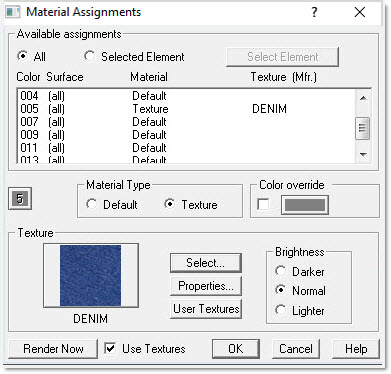

Click the Material Assignments icon
to access the corresponding dialog box.
-
Select the color from the list.
-
Change the Material Type to Texture.
-
In the Select Texture dialog, select a Standard Texture (provided by Giza) or a User Texture, and then click OK. The texture will be applied on all surfaces that have the color 005 as shown below.
