Advanced typical placement allows items to be placed on their original layers or other work layers or manage attributes that may have been associated with a typical when it was created

  1. From the menu bar choose Draw, Typical.

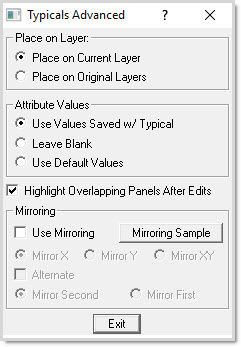

  2. In the Place Typical dialog, click the Advanced button to access the Typicals Advanced dialog.



  3. Under Place on Layer, you may choose to place the typical on the Current working layer of the drawing or on the original layers that the typical was created on.

  4. Under Attributes Values, select the appropriate option.

  5. Check or uncheck Highlight Overlapping Panels After Edits.

  6. Check Use Mirroring if you would want to mirror the typicals being placed in the Grid or Radial format. Set the mirroring preferences accordingly. Click the Mirroring Sample button for a sample of how the typical will be placed with the mirroring preferences you choose.

  7. Click Exit to return to the Place Typical dialog.

  8. Click Place to place the typical into the drawing.
