Use the Draw menu to drawing basics in Giza.
-
Click the Draw CAD icon
to see the Drawing menu side bar or choose Draw, 2d CAD from the menu bar.
-
Click the Draw Running Line icon
on the Draw tab.
-
Pick a point in the drawing area.
-

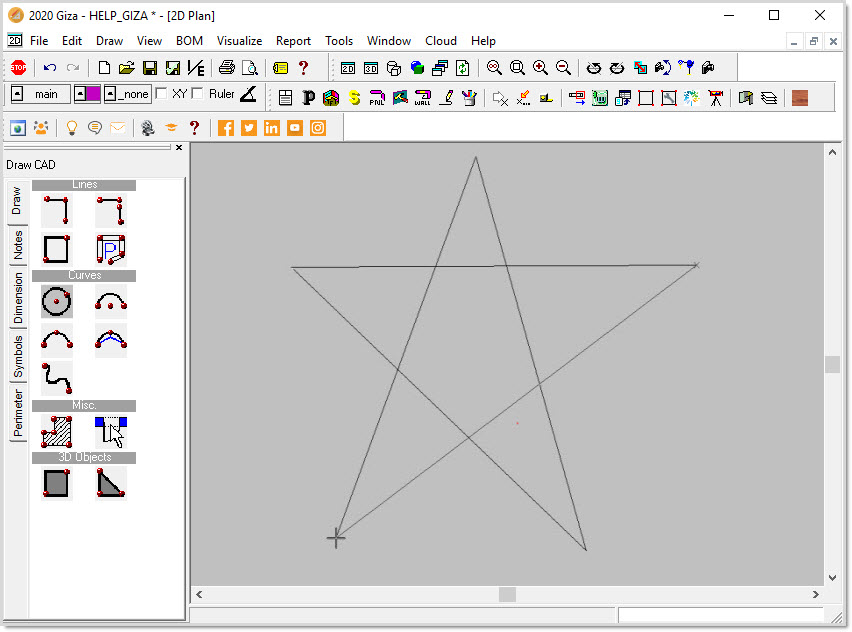

Draw a star.
-
To snap the lines together, right-click over the end of the first line.
-
To stop drawing a line, click the Stop button or press the ESC key on your keyboard.
-
Click the Single Line icon
on the Draw Tab.
-
On the Drawing Toolbar check the XY box to draw a line using orthographic projection (on 0°, 90°, 180° and 270° angles)
-
Draw a line under the star.
-
Use the Rectangle tool to draw a box around the star.
