Mirror allows workstations to be placed back to back without duplicating panels. If a symbols is handed the software will automatically update the symbol with correct part number.
Mirror X
-
Select the symbols to mirror.
-
Right-click on one of the highlighted symbols and select Mirror, Mirror X.
-
Select a Reference Point for Mirror Copy.
-
Click on the left side of a vertical panel to select the first reference point.
-
Click on the point that is on the opposite side of the vertical panel when the status bar displays New location for reference point. Essentially are making a mirrored copy of your worksurface and flipping it over the panel that you are choosing.
-

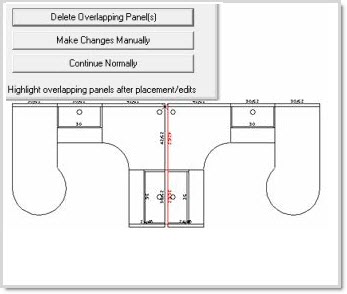

Click on Delete Overlapping Panels.
Mirror Y
-
Select the symbols to mirror.
-
Right-click on the selected furniture and choose Mirror, Mirror Y.
-

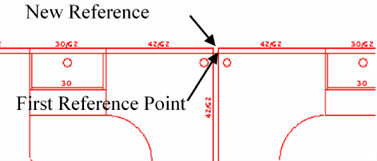

Select the first reference point (see below).
-
Select the New location for reference point on the opposite side of the vertical panel. Essentially you are making a mirrored copy of your worksurface and flipping it over the panel that you are choosing.
-

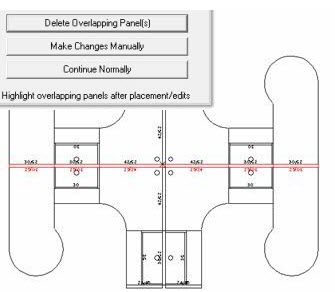

Click Delete Overlapping Panels, this dialog appears.
Move Rotate
Use this command to rotate or to rotate and move the symbol(s) at the same time:
-
Select the symbols to move and rotate.
-
Right-click on one of the selected symbols and choose Move, Move/Rotate.
-
Enter the degree and direction for rotation in the Rotate dialog.
-
Click Perform Edit.
-
Right-click at exact point on the selected symbol(s) to be referenced as the axis (the point the symbol(s) will rotate around).
To rotate only - right-click again at the same spot.
To move and rotate - move the cursor to the exact point on screen to move to (the first point selected will move to this point). Right-click again to snap to an existing symbol, or click once to move without snapping.
