STAKS by OFS
Giza

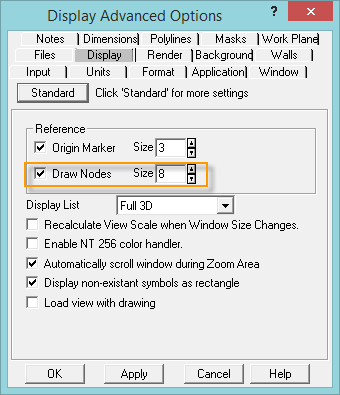

Change your Giza options to show point objects. From the "Tools" menu select Options. Select the Display tab and then click on Advanced. Place a check mark next to "Draw Nodes" and click Apply and OK.

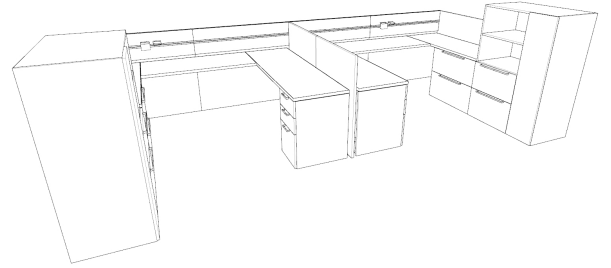

Starting with the "Space Division" section of the catalog, plan your spine or divider walls.

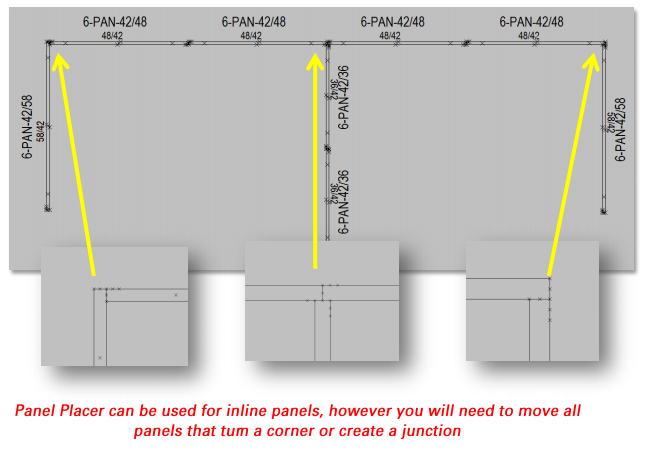

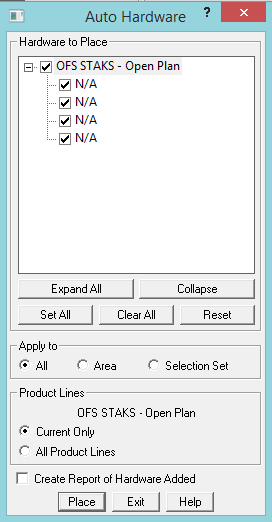

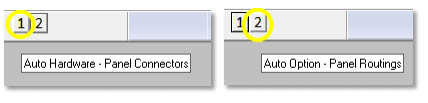

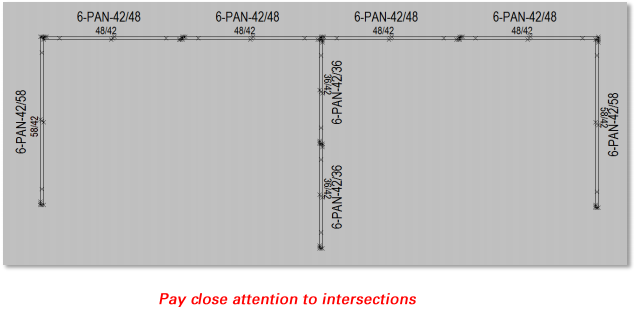

Once the panels are placed, click the buttons labeled 1 and 2 on the toolbar to place the connectors and panel routings.
The tags denote the type of connector kit and panel routing required for order entry.

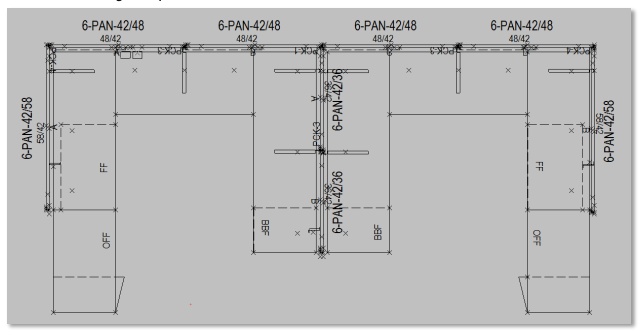

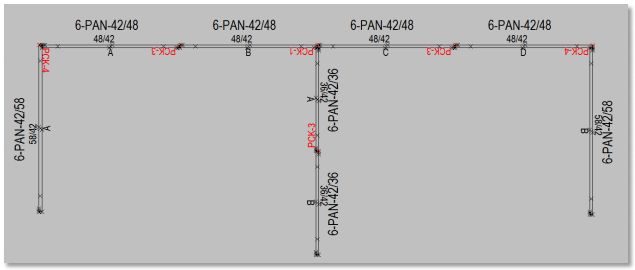

Example Shows:
PCK-1: T connector kit for -3 42" or 48" tall spine or divider wall panels
PCK-3: Inline panel-to-panel connector kit for 42" tall spine or divider wall panels
PCK-4: T and L connector kit for -2 42" tall spine or divider wall panels
A, B, C tagging helps sort based on routing options (unique tag is based on panel size and is transferred to the Alias 3 column in 2020 Worksheet)
Now place the remaining components.
Worksheet

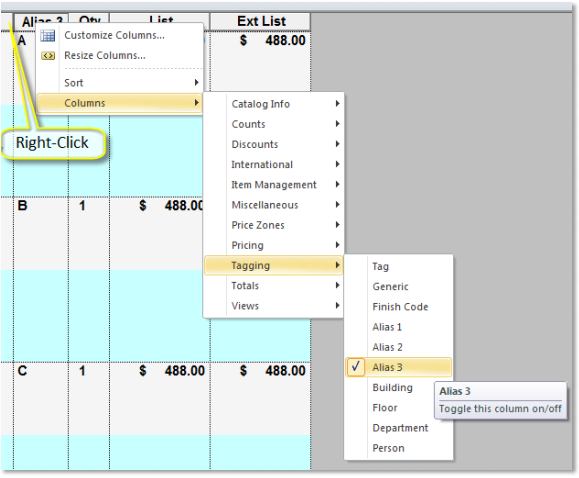

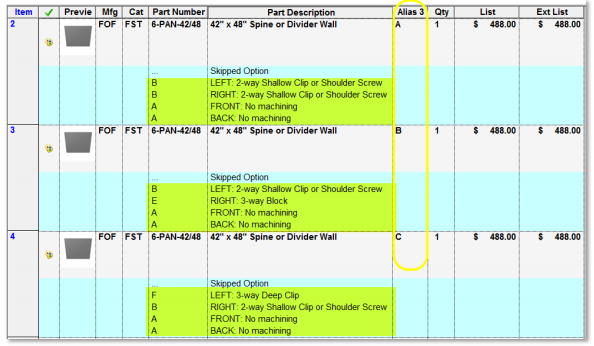

The options for routing will appear in the option trail and by turning on the Alias 3 column. You can then sort by the tag that was placed in the drawing.
