Giza publisher dialog

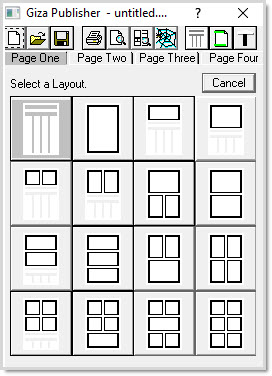

1. In the Giza Publisher dialog box, click the Change Layout button.





2. In the dialog that appears, choose this layout.



Note: In this example we will place a logo centered on the top and the customer information centered on the bottom.

3. In the Giza Publisher dialog, click the upper frame.



4. To the right, under Type, click the drop-down arrow, choose Bitmap File.



5. Click the Contents button, a dialog appears. Click Browse and locate the file to be inserted (any currently available bmp).





6. Click the lower frame.



7. To the right, under Type, click the drop-down arrow. choose Text.



8. Click the Contents button. A dialog will appear where you can type in the text. (Customer information).





9. Set the Border Type to None.

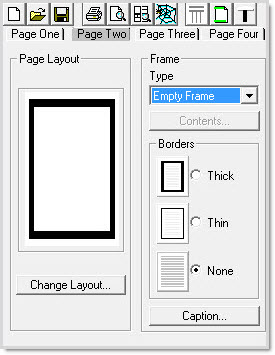

1. In the Giza Publisher dialog, click Change Layout and choose the icon in the first row, in the second column.



2. Under Type, click the drop-down arrow and choose Plan View.



3. Set the Borders to None.

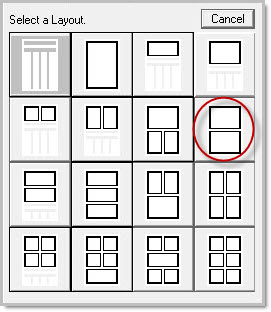

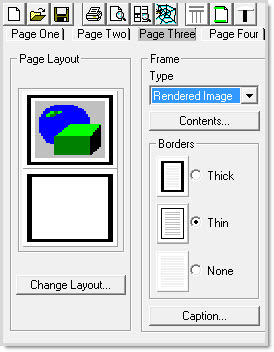

1. In the Giza Publisher dialog, click Change Layout and choose the icon in the second row, in the fourth column.



2. Click the upper frame.



3. Under Type, click the drop-down arrow and choose Hidden Line View.



4. Click the bottom frame.



5. Under Type, click the drop-down arrow and choose Rendered Image.

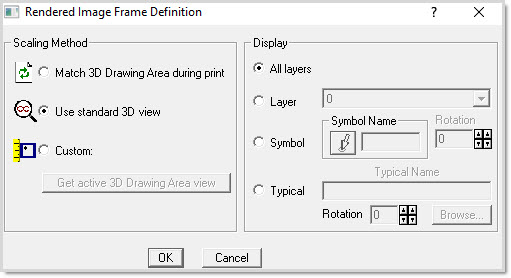

6. Click on the Contents button to alter the default Rendered image. Select the type of scaling for the rendered image. Then, choose what will be visible, choose All layers, Layers, Symbol or Typical. Symbols or typicals can be rotated differently than the hidden line drawing.





7. Set the Border Type to None.

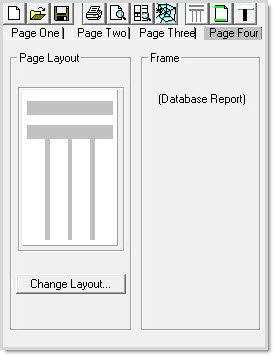

Giza Publisher automatically prints the Bill of Materials on the last page.
