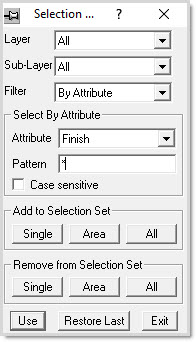

From the menu bar choose Edit, Selection Set. The Selection Set dialog box appears.
-
Select the Sub-Layer of the items that you want to work with in your drawing. For example, select gn-panel.
- To add all items in the drawing to the selection set, click on All under Add to Selection Set.
- If only the panels from a portion of the drawing should be added, click Area and select the desired area.
- Select Single to select each panel. It will not allow you to add anything to the selection set that does not meet the criteria specified above. -
To remove items from a selection set, utilize the same criteria as above but use the Remove from Selection Set area.

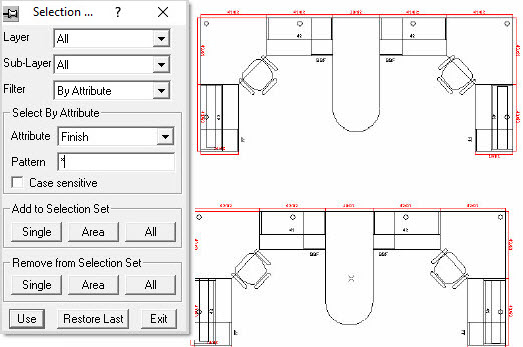

The following figure demonstrates all of the panels being included in a selection set.
