Worksurfaces

Bally
  • Updated
When placing worksurfaces, the cross hair will be on the back corner of the worksurface. Be sure that the back of the worksurface is attaching to the panel.

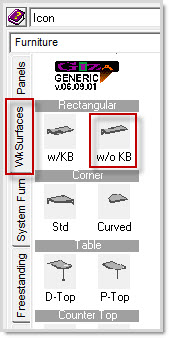

  1. Click the WkSurfaces tab on the Furniture Icon Menu, then select w/o KB (without keyboard).



  2. Select a 36x24 rectangular worksurface.



  3. Bring the cursor into the drawing area. An outline of the worksurface is attached to the cursor.

  4. Use the arrow keys on the keyboard to rotate the worksurface.

    Note: If the symbol will not rotate, select it again from the menu.

  5. Bring the worksurface close to, but not touching, the corner created by the panels in the lower left.

  6. Right-click to snap it to the panels. If you have the symbol too close to the panels, it may snap to the wrong side of a panel. Make sure you place the worksurface correctly before continuing.

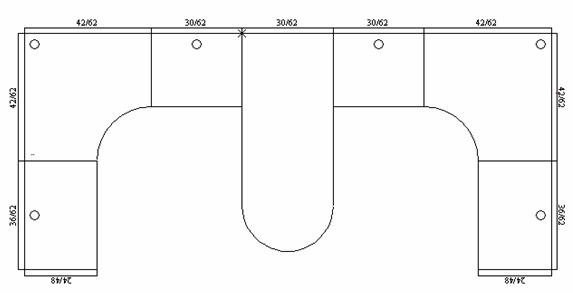

  7. Continue placing additional worksurfaces in the same manner, with a 42” corner worksurface in each corner and a 30 x 72 peninsula attached to the 30” panel as shown below.
