Now it is time to turn off the X, Y forcing and the Ruler by removing the check marks at the top of the drawing window. This is necessary when you place furniture because x,y forcing only allows furniture to be placed in line with the first symbol placed.
-
Select the correct product line
-
Click to choose sections of the catalog.
-

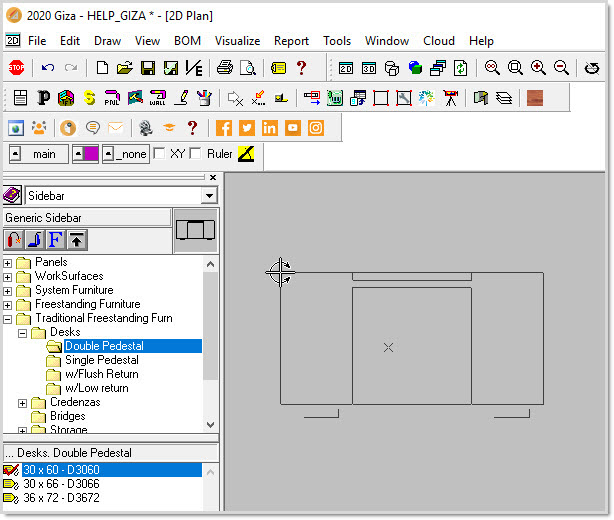

When you are at the product level, click on the symbol you would like to place, the symbol should now be on your crosshairs.
-
To rotate an object you can use the arrow keys. Right and left arrows spin the furniture 11.25° at a time. The up and down moves 90° at a time.
The right and left arrow key rotation increment of 11.25° can be changed in the Options Dialog box. Found under the Tools pull down. -
Place the object with a click at the starting location in the drawing window.
