Side menus overview

Bally
  • Updated
The left side menus change depending on the tools you use.




  1. Click the Draw CAD button to see the Drawing menu side bar or Pick 2d CAD from the Draw pull down.

    Notice the Draw, Notes, Dimension, Symbols and Perimeter tabs. Each tab has different drawing tools. We will cover these tools later in this manual.

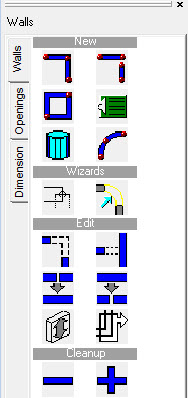

  2. Click the Draw Walls button to see the Walls menu side bar or click Walls from the Draw pull down.

    Notice the Walls, Openings and Dimension tabs. We will cover these tools later in this manual.



  3. Click the Furniture Placement button to see the Furniture menu side bar. The default library is Generic. Other furniture libraries are available.

    Notice the tabs for each section of the library, the tabs will change depending on the library loaded.
