Click this icon

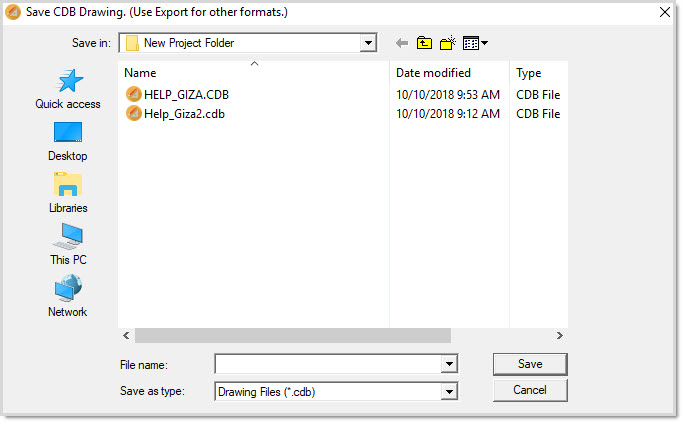

or from choose File, Save from the menu bar. The Save Drawing or file dialog box opens.
-
In the Save in field, note that the file is being saved in the CDB folder this path can be changed to the desired location.
-
In the Save as type Field, note the type of file you are saving. In this example, you are saving a .cdb file.
-
In the File name field, type in the name of your file.
-
Click OK.
Note: Catalog symbols are saved locally in the drawing to prevent symbols not showing up when a catalog is missing or changed.
Saving drawings
