The Plan View Structure tool creates a layout map of the vertical structure members for the selected structure runs. You can then view and print this layout for installation documentation. The Plan View Structure (PVS) tool will place a square to indicate locations of vertical structure members. At the same time, the PVS will place dimensions for the center to center distances between structure members.
Also, this tool includes structure labels. These labels indicate the height and type of each structure member. This PVS tool does not include the turns placed by Auto Connectors. This tool blocks together the PVS for each structure run. The PVS is on its own layer to allow hiding, moving and color changes as desired.
-
Click
-
Select the structures and press Enter.

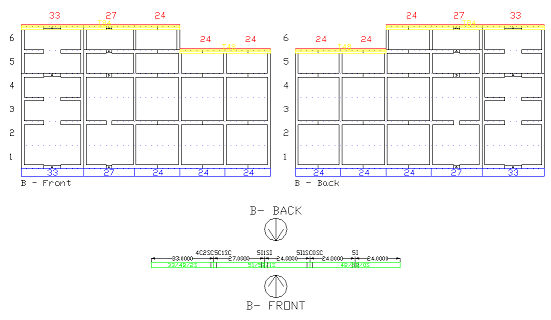

Examples of structure labels:
-
4C2SC5C1SC – This structure member is a 4-high base C with 2-high stack C and 5-high base C with 1-high stacking C.
-
5I1SI – This structure member is a 5-high base I with a 1-high stacking I.
-
5I1SC0SC – This structure member is a 5-high base I with a left facing 1-high stacking C and no right facing C structures.
-
5I – This structure member is a simple 5-high base I with no stacking structures at all.
