Another method for redefining a workstation is to create a new name such as TYP-A REV for the revised workstation. Then, if you need to go back to the original later you can.
-
Place a Standard on the drawing in the 0 rotation.
-
Click the Undo Standard icon
on the Cap Standard toolbar. You may also use the Office ribbon.
-
Select the Cap Standard you need to revise within your drawing. Press Enter to confirm your selection.
Notice that the tag disappears, and if you hover over the parts in the workstation they can now be selected individually. -
Change the workstation.
-
Create a new Standard with the Name TYP-A REV.
-
Once you create the new standard, click the Block Replace icon
in the Office toolbar.
-

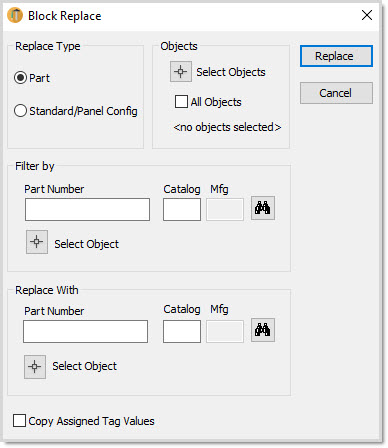

In the Block Replace dialog box, under Replace Type, select Standard.
-
Under Objects, click the Select Objects
icon to go back to the drawing and select a standard, or check All Objects.
-
To narrow down, under Filter by, you can type a part name, search one with the Part Find tool
or select filter objects
-
Under Replace With select the new standard as described in the previous step.
-
Check Copy Alias Tag Values to pull these in as well.
Note: For more information about the Block Replace command see Search and replace.
