Use this command to modify the part information of a custom part.
Note: If you need to modify the symbol, the insertion point or the tag location, you will need to undo the part then create it.
Click
on the Cap Part toolbar. You may also use the Office ribbon.
Select the part on the drawing.
Press Enter or right-click to confirm your selection.

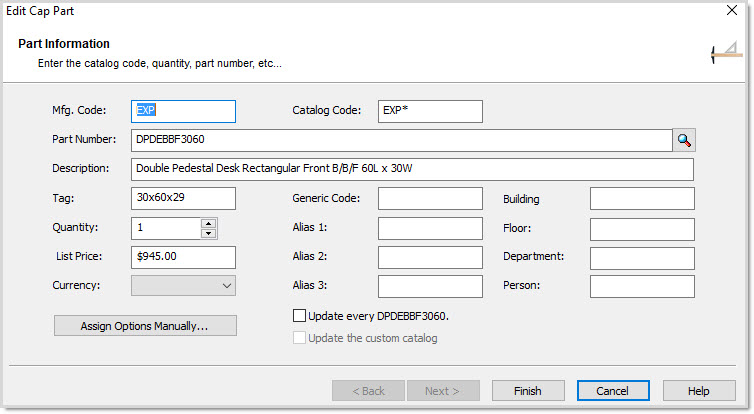

On the Edit Cap Part dialog box, modify the part information.
Notes:
- If you created the part by modifying an existing symbol, you must keep the identical Mfg Code, Catalog Code and Part Number if you want to keep 2D and 3D graphics.
- If you know the Catalog Code and the Part Number of a similar item you can type them in and click the Search buttonto fill in the Part Description and List Price.
Note: From version 2026.2 you can now add a Quote number, this field is optional. When completed the value is included in the special's exported drawing data and is automatically populated in the corresponding Quote number field with the drawing is imported into Worksheet.
Click Finish.
