If you created a visual worksheet for the drawing, you can update the drawing with any finish changes made in Worksheet or Visual Impression. Those changes will then appear in subsequent visualizations.
Update against Visual Worksheet does not transfer any product additions, deletions, or changes made in the Worksheet. It allows users to use Worksheet with Visual Impression to make changes without impacting the integrity of the original drawing.
All worksheets "know" what drawings they originated from. Worksheets created through a "Save As" of the original worksheet retain the drawing relationship, allowing you to update a drawing from other versions of the original worksheet. This is helpful when different scenarios of options are presented to the customer for feedback. In creating versions of the original worksheet and specifying each scenarios with different finishes, any of the versions can be used to update the drawing.
-
Click Update Against Visual Worksheet
on the Office toolbar.
You may also use the Office ribbon or Office menu.
-

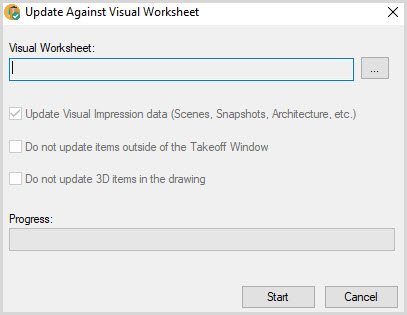

Under Visual Worksheet, select the worksheet you want to update against.
-
Choose whether you want to update:
- scenes, snapshots, or other from the worksheet to the current drawing.
- items not included in the current Takeoff.
- 3D items in the current drawing. -
Click Start.
