Pre-set layout tabs
The "Cap Complete.dwt" pre-set multiple tab layout file allows users to create project output from any workspace without having in-depth knowledge of layout tab creation. It is available to all users and is the default use.
-
Click on the Open
icon at the top of the screen. The file selection dialog box opens.
-

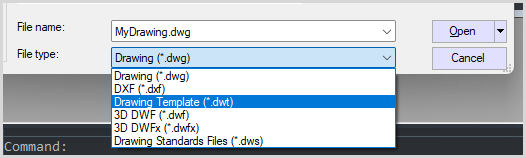

Make sure the Drawing Template (*.dwt) option is selected in the File type drop-down list.
-
In the Select File dialog box, under Template directory, select Cap Complete.dwt. and click Open.
-
You can select the layout for the paper size (Letter, Legal, Tabloid), paper orientation (Portrait, Landscape) and whether you want to include 1 or 2 viewports.
Easy print settings
When you work with the provided template (DWT) file and layout tabs, you can print quickly and easily. Simply select the layout tab you want to print and press the Plot (printer) button at the top of the screen.
This opens the Plot dialog where the following settings are pre-selected to print to a PDF. Paper size and orientation are already selected as well as set to print to black and white (monochrome.cdb). Users can easily print to PDF or select their own printers and adjust these settings as necessary to control the output they expect. 3D viewports on the provided Layout tabs are set to print with hidden lines, regardless of how they appear on the screen. See illustration below.
Work with customizable title blocks
As you can see in the picture below title blocks are set up on every page and set up as attributes. You can double-click anywhere on the title bloc and a dialog box will appear allowing you to provide values.
Dealers can also enter their dealer information and logo in the middle of the title block.
