Place typicals on a grid

To place a typical on a grid choose Draw, Typical from the menu bar. The Place Typical dialog box appears.

Choose Grid and click Place.

Snap the next Typical by right-clicking to the outside panel.


The Input dialog pops up.

Enter the number of typicals you need in the row and click OK.

When you are asked to place the typical again for the next row placement, if you only want one row click Stop or press ESC. To place the next row, use the Point Input tool. Add the width of the typical to the aisle size for your Y distance.

Select From Fixed Point and Enter Point.

Right-click the insertion point of the first typical.

Enter the number of rows you want and click OK.

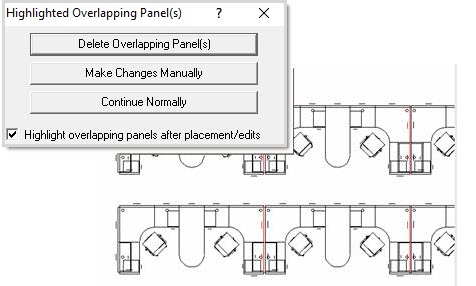

If there are any overlapping panels, the Highlighted Overlapping Panel(s) dialog appears.



If you click Delete Overlapping Panels, any duplicate, overlapped panels will be removed.
