To add a .bmp or .jpg graphic (such as a company logo) to a drawing:
-

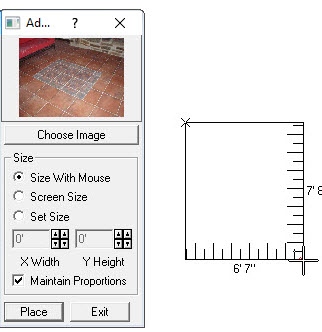

Click Add Image in the Tools toolbar.
-
Click the Choose Image button and locate the .bmp file.
-
In the Size area, select a sizing option. The options are:
Size With Mouse - after clicking the Place button, hold down the left mouse button and drag from the lower left to the upper right. Release the mouse button.
Screen Size - this uses the same size the bitmap was originally saved as.
Set Size - Enter a width and height. This depends on the overall size of your drawing.
Maintain Proportions - It is best to check this box, as the graphic will be properly proportioned rather than having a “stretched” appearance.
