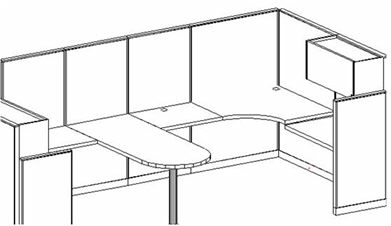

In this example, we will lower the 36” worksurfaces from the preset height of 29” to a typing height of 27”.
-
Right-click on the symbol.
-
Hold down the CTRL key and click on each of the worksurfaces so they are all highlighted.
-
Right-click on any red line, then choose Elevate from the edit menu.
-
The Input dialog box opens.
-
To move the symbols up, enter positive numbers or use the Up increment arrows. Worksurfaces will insert at standard worksurface height and must be moved in relationship to their default insertion point. To lower the symbols enter negative numbers or use the Down increment arrows.
Enter -2” in the New Z-height field and click OK.
