Launch the Drawing Setup Wizard.
-
Select Drawing Setup
in the Office menu.
-
In the Drawing Setup Wizard, click New Drawing.
-
In the Select Project dialog box, decide where to store the new drawing.
Note: The Wizard creates a default folder called My Projects. The purpose of My Projects is to create a shortcut to project folders that you are working in. The benefit is that you don't have to go through several layers of sub-folders to get to your project folder. Project folders removed from this list are not deleted. -
To create a new project folder, click All Projects, then click the New button.
-
A new project folder appears. Type the name for this project.
-
Click Next to continue.
-
Use the Drawing Setup screen to setup the drawing Plot Size and Plot Scale.
-
Click Next to continue.
-
In the last dialog box, enter a unique file name then click Finish to close the Wizard and open the new drawing in 2020 Cap.

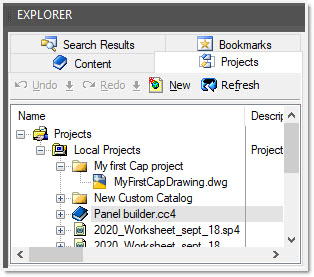

You can access the drawing from the Projects tab of the Explorer pane. Simply double-click on the drawing to open it.
