See the following for information about Cap commands specific to Herman Miller:
Convert CAD pack drawings
-
To use the Convert Herman Miller CAD Pack feature, the "CAD Pack to Cap Conversion" command must be run within CAD Pack.
-
From Cap Complete, open the CAD Pack drawing that needs to be converted.
-
From the Office menu, select Convert, Herman Miller CADpack.
-
Cap Complete will prompt for a selection of objects. Select the items using a window or type "All" to select the entire drawing.
-
Once the selection process is complete, the conversion will be done.
Import Z-Axis
To use the Z-Axis import feature:
-
From the Office menu, select Import, Z-axis.
-
In the Open dialog, locate the .ZXF file to be imported then click Open.

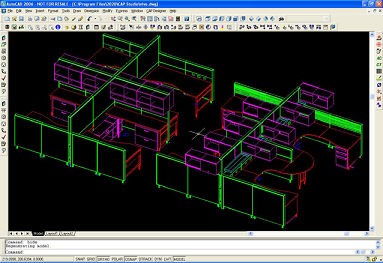

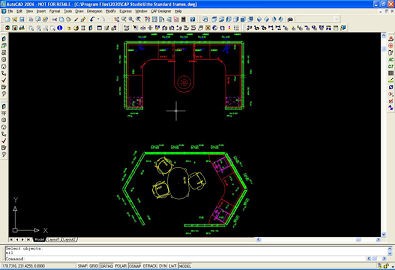

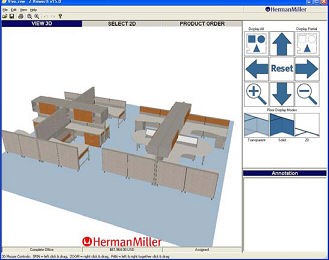

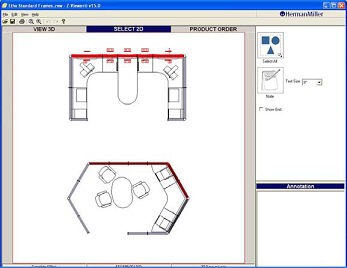

Here are some images showing the "before" in Z-Viewer and "after" in Cap:
|
Before |
After |
|
|
|
|
|
|
