You may want to select several items in your worksheet and add those items as a Standard into your custom catalog. By adding these items as a Standard they will appear within one group.
You must first select several items, access the Custom Catalog Wizard from a worksheet and then choose a location in the custom catalog.
-
When you are in the Saving Your Work screen you can only select Store in the custom catalog as a Standard because you have selected multiple items.
-
Click Next.
-

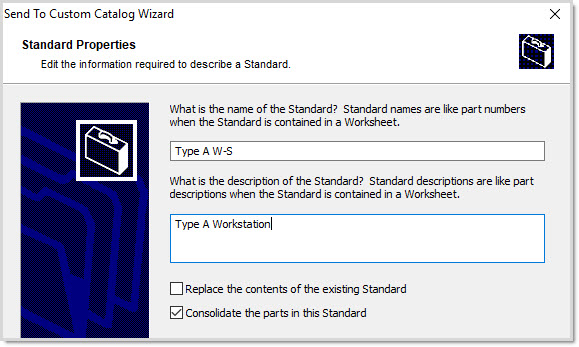

Enter a name and a description for the Standard.
-
Leave Consolidate the parts in this Standard checked so that identical parts in the standard will be consolidated.
-
If necessary, assign Alias values to all the components of the Standard.
-
Click Finish.
-

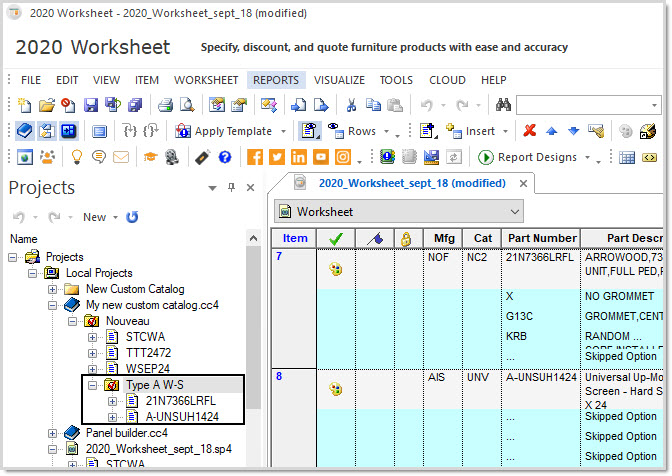

Go to the Projects tab in Explorer and click
to display the Standard in the custom catalog.
-
To add this Standard to a worksheet, see Reuse a Standard from a custom catalog.
To add an individual part from this Standard to a worksheet, see Reuse an individual part within a Standard from a custom catalog
