Outline levels allow you to better organize your worksheet. For example, you would use an outline level for a floor, building or room name. Within each outline level you would have your parts and standards. When you print the worksheet, you can show only the outline levels to be able to quickly look at pricing per level.
You can create outline levels from the worksheet or from a Cap drawing. In Cap, you would create CAP bounds and this will be represented in Worksheet as an outline level. See the Bounds section in the CAP Designer online help for details.
To create an outline level in Worksheet:
-
Click
on the Item toolbar then select Outline level.

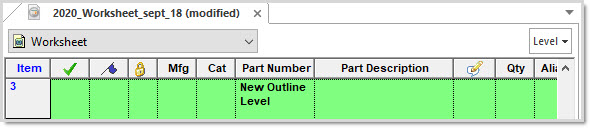

A green line is inserted in your worksheet, representing an outline level.
-
Click in the Part Number column to change the outline level name, if necessary.
You can use the same commands available to Standards for Outline levels. See the following topics under the Standards section:
-
View the contents of a Standard - to step into an outline level to view and modify its contents.
Note: You can also create an outline level by breaking a standard link.
